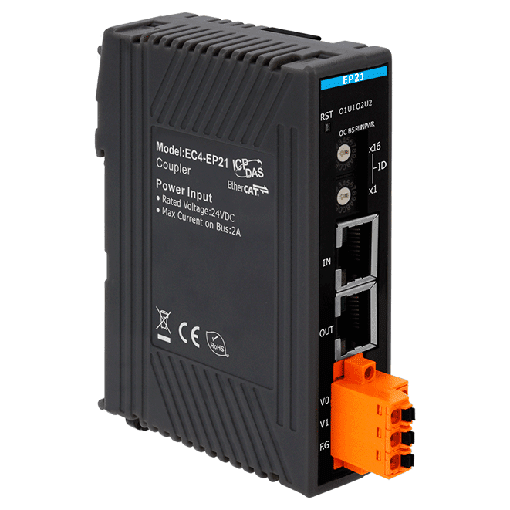

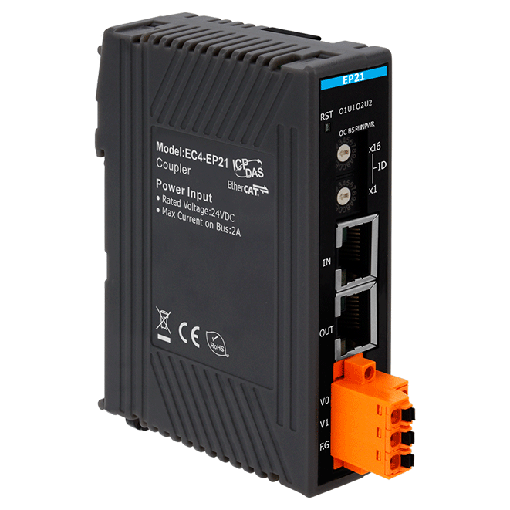

EC4-EP21 EtherCAT coupler with ID switch

Name: EC4-EP21 EtherCAT coupler with ID switch
Brand: simple
Availability: InStock

£179.00

Add to quote

Key Features

Interface:EtherCAT
2 x RJ45 interface
Distance between stations up to 100 m (100BASE-TX)
External ID
Support dual power input
Provide over-voltage/under-voltage/over-current protection

Description
Datasheets

Description

The ICP DAS EC4-EP21 EtherCAT coupler is the connection between the field bus grade EtherCAT protocol and the EtherCAT low-profile module. A station consists of a coupler and multiple EtherCAT Slim modules.

It is equipped with the EtherCAT protocol and installed by daisy chain connection that provides a more scalable system with fewer wires. Users can obtain the input and output status not only via the process data but also from its LED indicators.

Applications

• Automated Test Equipment
• Surveillance Systems
• Labeling Machinery
• Packaging
• Semiconductor Manufacturing
• Engraving Machine
• Automatic Feeding Machine

EC4-EP21_en
