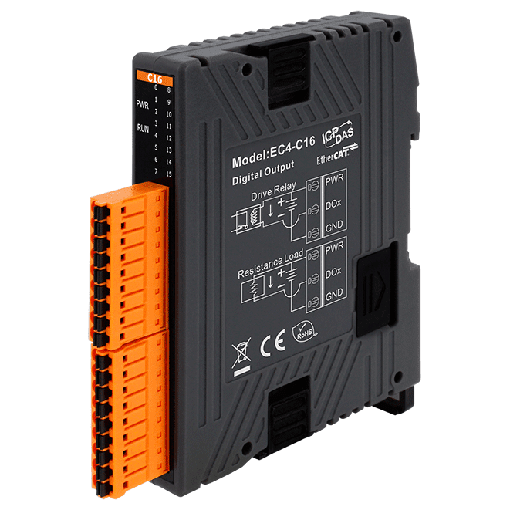

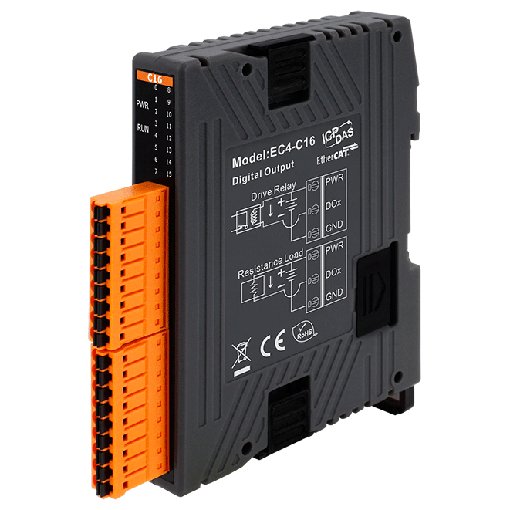

EC4-C16 EtherCAT SubDevice Slim Module with Isolated 16-ch DO

Name: EC4-C16 EtherCAT SubDevice Slim Module with Isolated 16-ch DO
Brand: simple
Availability: InStock

£132.00

Add to quote

Key Features

Interface: EtherCAT
Removable terminal block connector
LED indicators for the I/O status
Built-In isolated 16-channel digital outputs
Low Pass Filter

Description
Datasheets

Description

The ICP DAS EC4-C16 is an industrial I/O module designed with a slim-type form factor, featuring 16 isolated digital output channels. It features the EtherCAT protocol, providing a system with higher scalability and fewer cables Users can check the current input status through LED indicators on the enclosure.

In addition, the module has passed the test and verification of the conformance testing tool. It is also compatible with various standard EtherCAT MainDevices to enable diversified applications.

Applications

• Automated Test Equipment
• Surveillance Systems
• Labeling Machinery
• Packaging
• Semiconductor Manufacturing
• Engraving Machine
• Automatic Feeding Machine

EC4-C16_en
