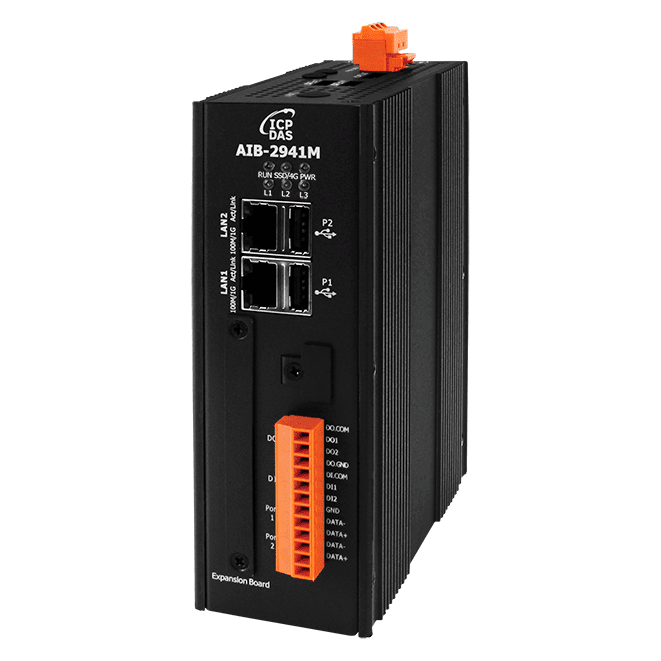

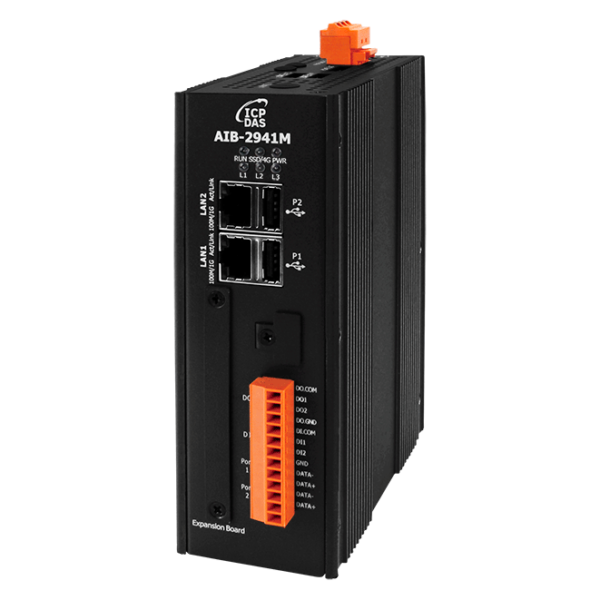

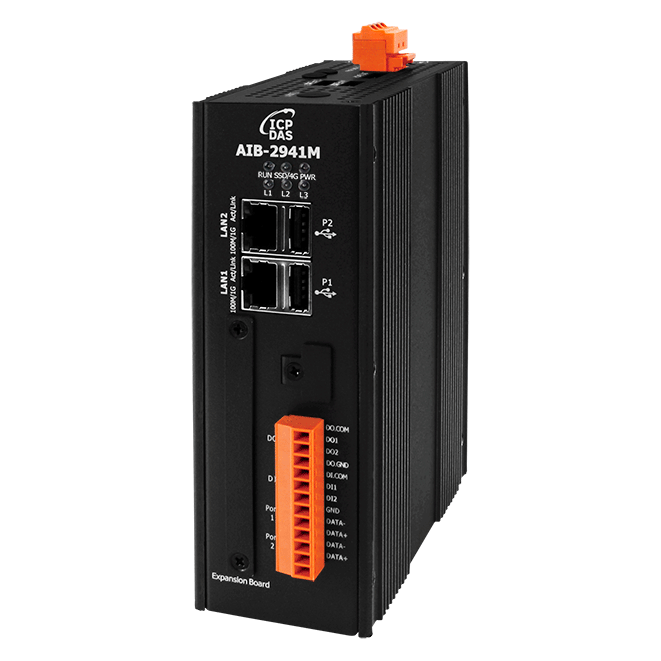

AIB-2941M/S1 Edge AI controller, includes AI accelerator (Hailo 8 Lite, TOPS = 13) (RoHS)

AIB-2941M/S1 Edge AI controller, includes AI accelerator (Hailo 8 Lite, TOPS = 13) (RoHS)

£1,499.00

Add to quote

Key Features

  • M.2 Key B connector with USB interface for AI accelerator modules
  • M.2 Key M connector with PCIe interface for AI accelerator modules/SSD
  • Compatible with 13 TPOS Hailo 8 Lite AI Accelerator(Equipped with AIB-2941M/S1)
  • Built-in multiple communication interfaces(Ethernet*2、USB*4、RS-485*2)
  • 2-CH isolated DI and 2-CH isolated DO
  • Support HDMI output 4k display
  • I/O Expansion Bus
CE UKCA RoHS WEEE

Description

The AIB-2941M controller is a fanless, secure, compact, low-power edge AI computing device powered by an ARM-based CortexR-A72 processor. Equipped with peripherals such as GbE LAN, HDMI, USB 3.1, DIO and 4G wireless connectivity. Through the AI accelerator module, AI computing capabilities can be expanded, and AI and edge computing can be introduced into industrial applications. A wide range of I/O expansion boards can be used for expansion. Rugged stainless steel housing and heat dissipation make it suitable for operation in -20 to +70 °C environments.

The AIB-2941M/S1 paired with Hailo-8 artificial intelligence module to realize edge AI solution.

AIB-2941M is equipped with multiple 485 serial communication ports, two Ethernet and USB ports to expand I/O and connect external devices.

aib-2941m_en
